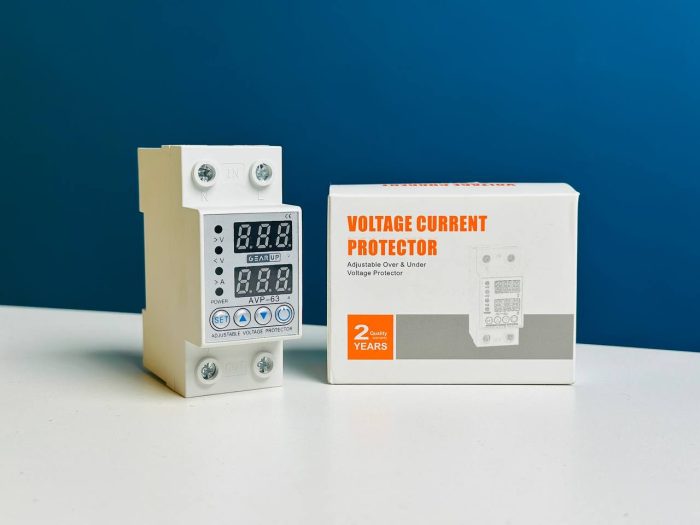

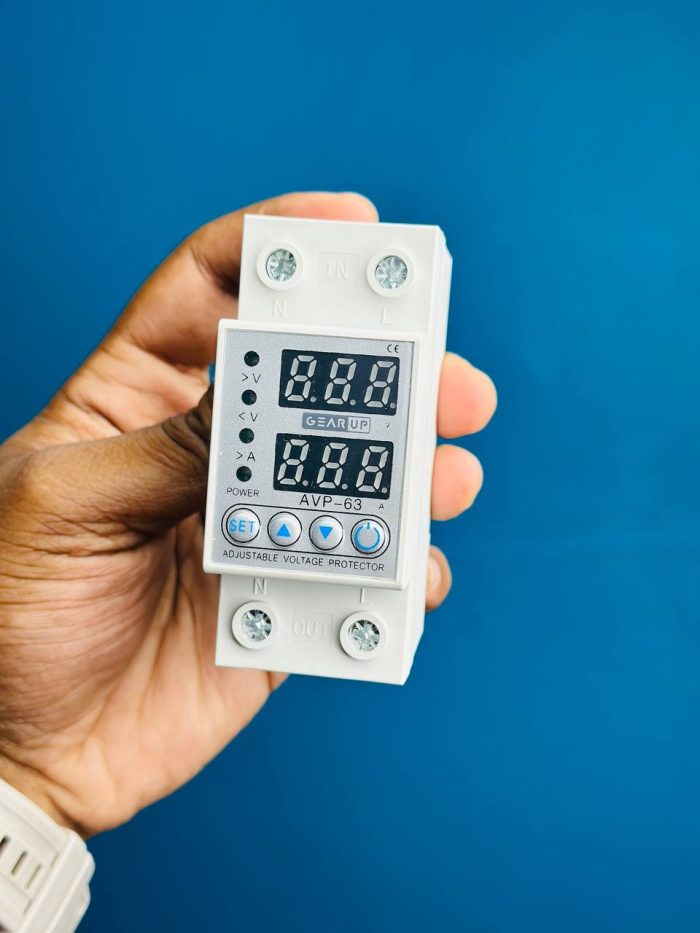

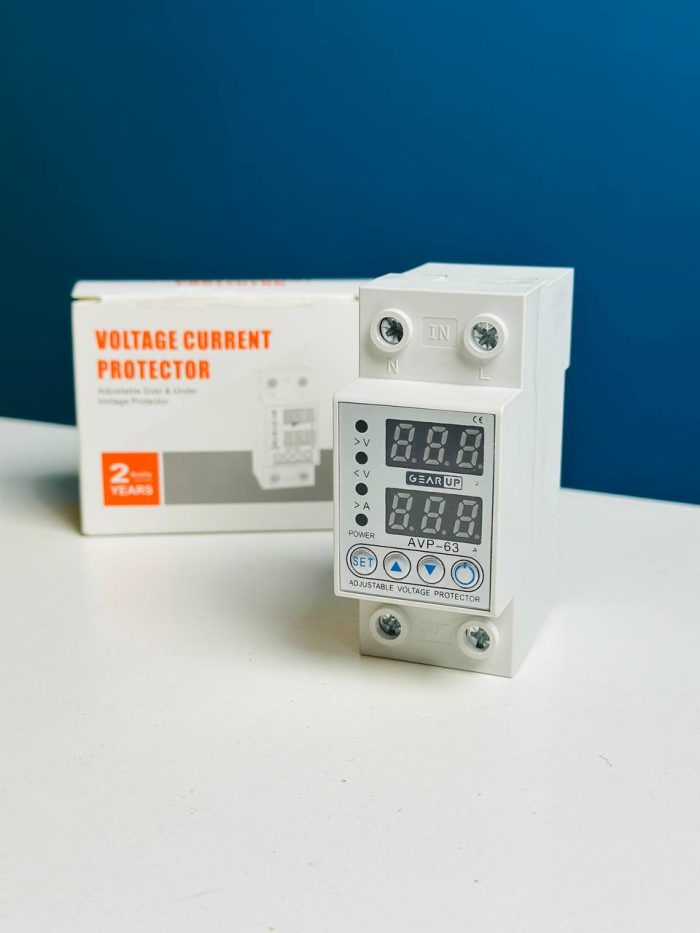

GearUP AVP-63 Automatic Voltage Protector-220V

GearUP AVP-63 Automatic Voltage Protector in Bangladesh Key Functions Protection Features Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3). Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5). Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10). Automatic Recovery: Restores power after fault conditions (adjustable via P-15). Fast Power-Down: Emergency cutoff (enabled via P-14). Monitoring & Display Real-time voltage display (AC/DC). Real-time current display (AC only; DC mode shows voltage only). Indicators for faults (>V, <V, >A) and normal operation (POWER). Programmable Settings Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17). Password protection (P-17) to prevent unauthorized changes. 2. Technical Specifications Category Details Power Supply AC: 320V / DC: 80–300V Frequency 50/60Hz (AC only) Voltage Range AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating) Max Current 40A/63A (configurable) Accuracy Voltage: <1% Response Time Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10) Environmental -25°C to 50°C, ≤2000m altitude, ≤50% humidity (at 40°C) Physical 512 × 960mm, 15kg 3. Setup & Operation Guide A. Initial Configuration Power Connection: Wire terminals (N-L) to AC/DC source within rated limits. Menu Navigation: Use front-panel buttons to adjust parameters (P-1 to P-17). B. Critical Settings Parameter Purpose Default Range P-3/P-5 Over/under-voltage thresholds 300V/80V AC: 80–300V / DC: 130–300V P-9 Max current limit 63A 14–63A P-15 Auto-recovery after fault ON ON/OFF P-17 Password lock 000 000–999 C. Calibration Voltage: Adjust via P-8 (±10%). Current: Calibrate with P-12 (±10%). Frequency (AC only): Fine-tune with P-13 (±2.5%). D. Safety & Recovery Manual Reset: Required if auto-recovery (P-15) is disabled. Event Logging: Overcurrent counts (P-11) track fault history. 4. Usage Notes DC Mode: Current display disabled; only voltage monitored. Energy Saving: Enable P-16 to reduce idle power consumption. Altitude Warning: Performance may degrade above 2000m. Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
